Description： ·MICROWAVE DEVICE 　Type：   　Note：

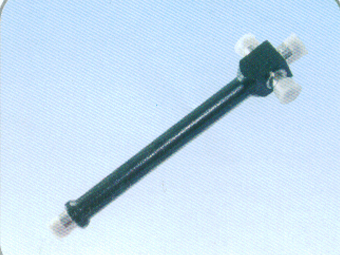

PD series chamber power splitter can be applied to CDMA800MHz,TETRA800MHz,GSM900MHz,DCS1800MHz and 3G indoor coverage system.The product uses the way of welding,completely ensuring fastness of the structure and can be used in various frequency bands of the leakage coaxial cable system.
Technical Characteristics：
类型 Type 二功分器 Two-way power splitter 三功分器 Three-way power splitter 特性Characteristics 工作频率 Working frequency (MHz) 824～960 1850～1990 824～960 824～960 分配损耗Apportionment loss 3dB 3dB 4.77dB 4.77dB 附加损耗Added loss(dB) ≤0.25 ≤0.25 ≤0.3 ≤0.3 驻波比 VSWR ≤1.15 ≤1.15 ≤1.15 ≤1.15(input) 隔离度lsolatingdegree(dB) ≥21 ≥21 ≥21 功率 Power(W) 100 100 100 150 阻抗 Lmpedance(Ω) 50 50 50 50 接头形式 nterfOca 7/16-KF/JF 7/16-KF/JF 7/16-KF/JF 7/16-KF 外形尺寸Dimensions 112.9×39.4×34 57×47×34 85.5×48×34 193×32×32
